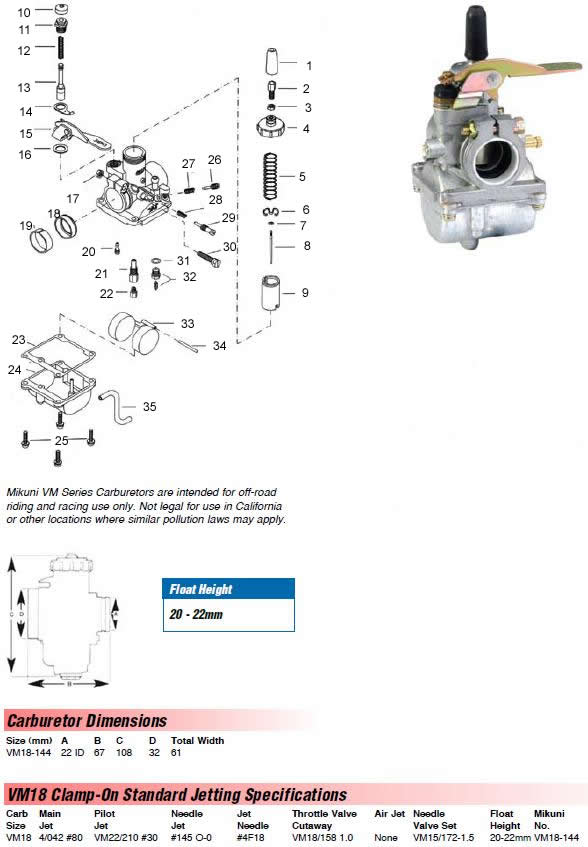

VM18 EXPLODED VIEW
|
| 1. RUBBER CAP, THROTTLE CABLE VM18/67 (SKU 007-685) |
| 2. Cable Adjuster M21/14 002-062 |
| 3. Nut, Cable Adjuster B30/247 002-065 |
| 4. Top, Mixing Chamber VM16/40 007-273 |
| 5. Spring, Throttle valve VM18/170 007-274 |
| 6. Clip, Jet Needle Retaining VM18H1/38 007-686 |
| 7. E-Ring, Jet Needle VM20/369 002-083 |
| 9. Throttle valve (slide) VM18/158-1.0 007-425 |
| 9. Throttle valveS / SLIDES |
| 10. Rubber Cap, Starter Plunger VM20/455 002-084 |
| 11. Fitting, Starter Plunger VM20/456 002-085 |
| 12. Spring, Starter Plunger VM16/42 002-671 |
| 13. Starter Plunger VM18/144 002-092 |
| 15. Starter Lever VM18/215 007-687 |
| 17. Nut, Clamp Bolt N1=05 007-279 |
| 18. Sealing Ring, Rubber VM18/326 007-280 |
| 19. Ring, Insulator (I.D.=23mm) VM18/327 007-281 |
| 20. Pilot Jet VM22/210 |
| 22. Main Jet 4/042 |
| 23. Gasket, Float Bowl VM17/161 007-282 |
| 24. Float Bowl VM18/161 007-283 |
| 25. Choose M4x14 socket head screw in fastenersOR Screw, Float Bowl 4x14mm CW2=0414 002-522 |
| 26. Air Adjusting Screw VM20/305 002-720 |
| 27. Spring, Air Adjusting Screw VM15/112 002-863 |
| 28. Spring, Idle Adjusting Screw VM15/112 002-863 |
| 29. Idle Adjusting Screw VM18/164 007-284 |
| 30. Bolt, Clamp VM16/65 007-285 |
| 31. Washer, Needle Valve Seat VM15/07 007-286 |
| 32. Needle Valve Assembly VM15/172-#1.5 007-288 |
| 33. Float VM17/159 007-290 |
| 34. Pin, Float BV26/22 002-107 |
| 35. Click here for optional fuel line and hose options |
| |
| VM SERIES Throttle valveS / SLIDES |
 |
007-731 90º adjuster KIT has threads on one end, the other end swivels.
Includes rubber cap, locknut, cable adjuster and 90º tube.
Works on Keihin and Mikuni carburetor caps.
The KIT 007-731 contains:
002-061 rubber cap
002-065 nut
007-757 adjuster
007-759 90 degree threaded tube |
 |
002-064 45º adjuster |
 |
002-065 45º Cable Adjuster Locknut B30/247
002-370 45º Throttle Cable Rubber Cap VM22/18
|
|
| |
| |
| |
